기능설명
- 작업지시상 생산라인 내 공정 개수에 따라 자동으로 탭을 생성한다.
- 전체 생산계획 생산예정 수량을 공정별로 시작, 완료하여 최종 공정이 완료될 경우 재고가 증가한다.
- 각 공정단계에서 불량, 불출수량을 추가적으로 등록하는 것이 가능하다.
- 계획수량이 모두 최종 공정을 통과하게 되면 생산이 종료되고 리스트화면으로 돌아간다.
단계별 화면

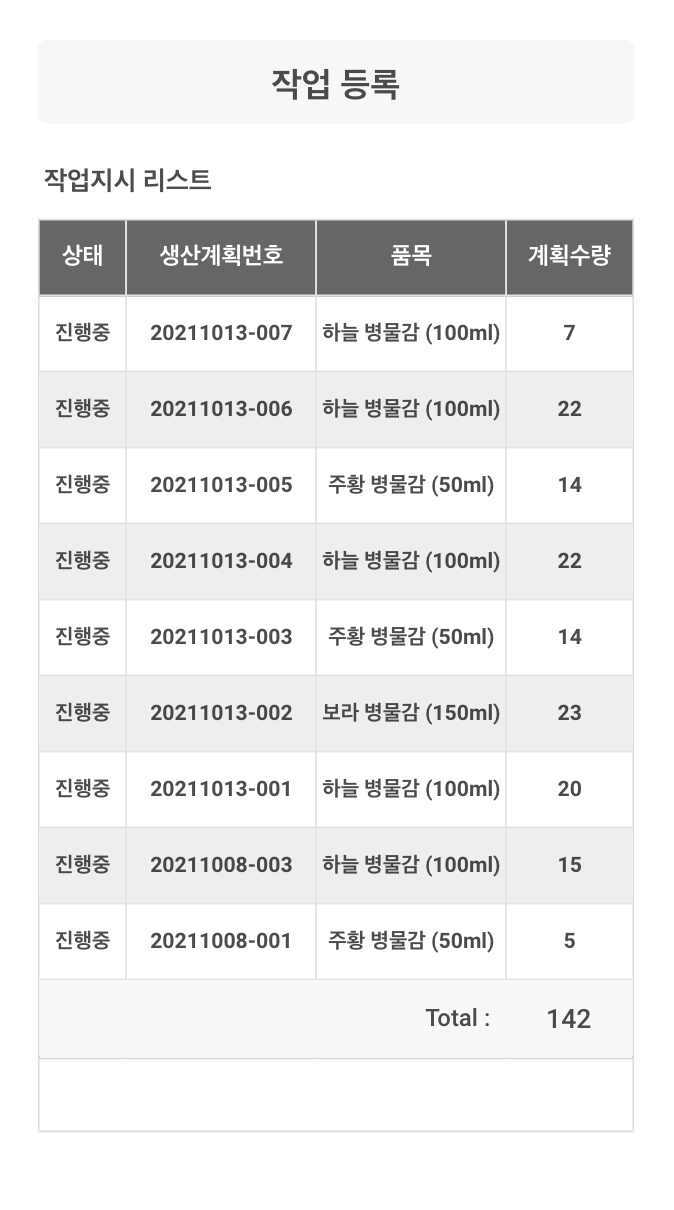

* list 에서 작업하고 싶은 row를 클릭하여 해당 작업으로 진입한다.
* 원하는 공정탭을 클릭하여 해당 공정의 대기수량 및 완료수량을 확인할 수 있다.

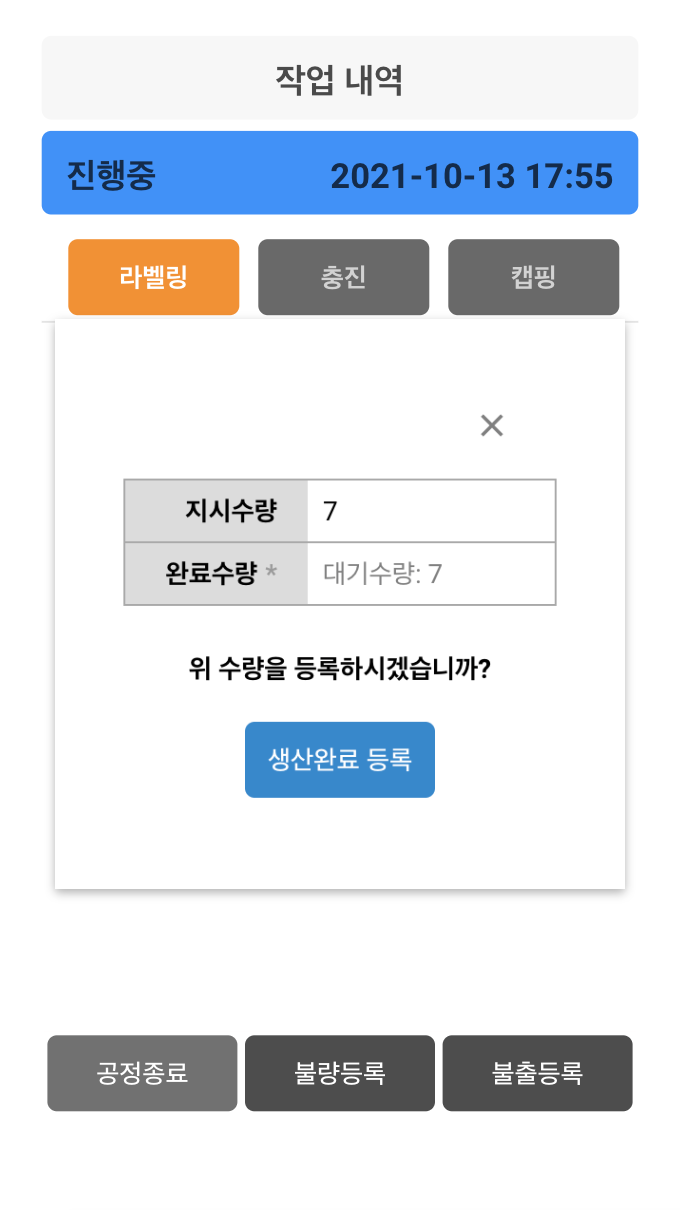

* 공정종료 버튼을 클릭할 시 새롭게 뜨는 팝업창에서 완료수량을 입력한다.
* 불량등록 버튼을 클릭할 시 새롭게 뜨는 팝업창에서 불량유형 및 수량을 등록한다.

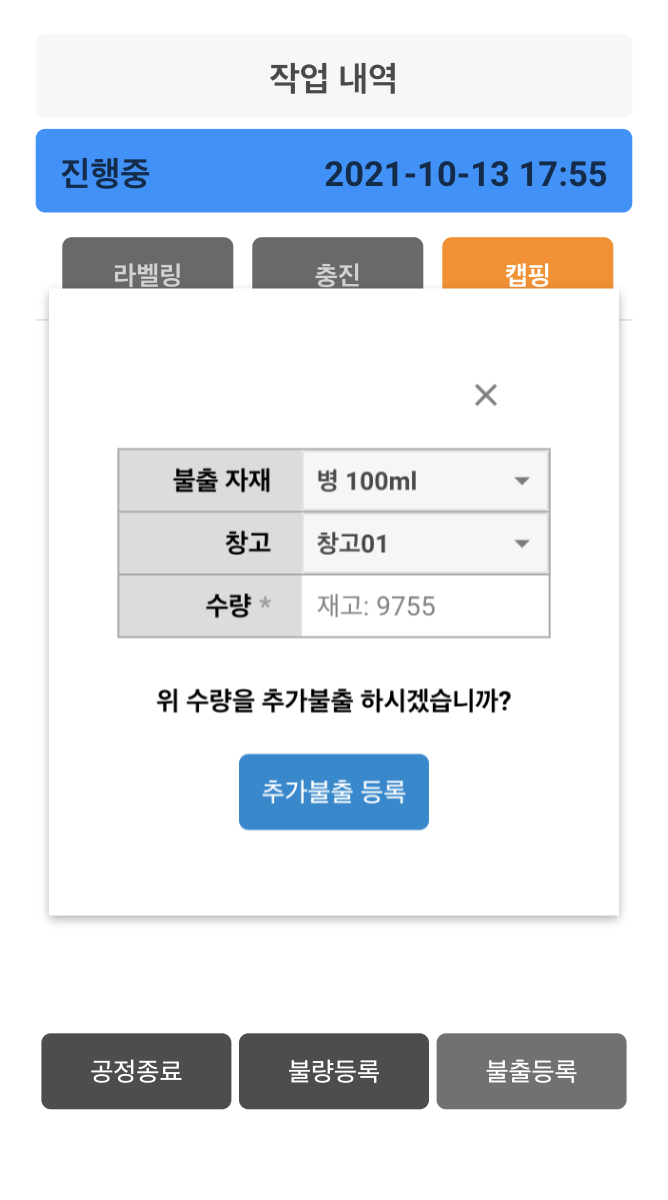

* 불출등록 버튼을 클릭할 시 새롭게 뜨는 팝업창에서 불출품목 및 창고를 선택하여 불출하는 것이 가능하다.

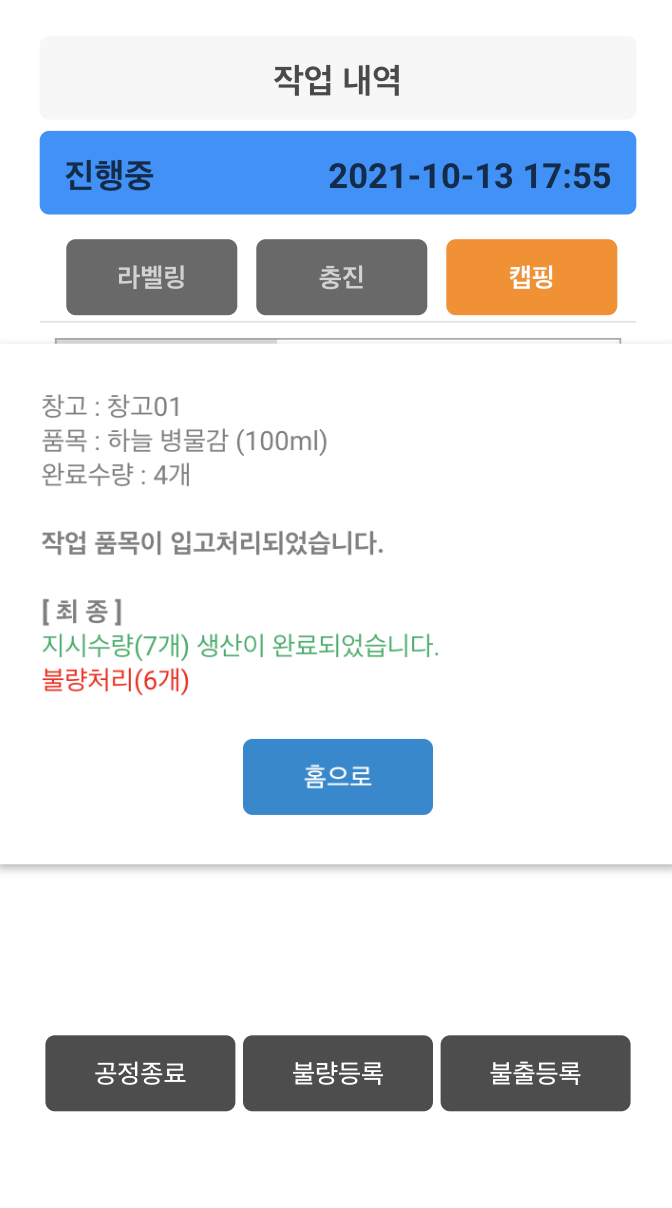

* 최종단계의 공정에서 총 수량의 품목생산이 완료될 경우 해당 생산이 종료되며 결과가 나타난다.
코드
/*
##### 수정로그 #####
2021.09.27 김현중 신규
*/
//*************************************** GLOBAL ******************************************//
//layout
var layout;
//grid
var plan_grid;
//form
var compform;
var next_form;
var bad_form;
var out_form;
//tab
var total_tab;
var active_tab;
//window
var comp_window;
var bad_window;
var out_window;
//data
var warehouse_uid = 1;
var warehouse_nm;
var badtype_data;
var bom_data;
var stok_data;
var left_stock;
//*************************************** EXECUTION ******************************************//
$(function(){
//************ init *************//
// fast click event in mobile
window.addEventListener('load', function() {
new FastClick(document.body);
}, false);
// create layout
layout = create_layout();
// select_data [prod_plan]
var plan_data = select_prod_plan();
plan_data = select_common('',[plan_data]);
plan_data = plan_data.data[Object.keys(plan_data.data)[0]];
// create grid [prod_plan]
plan_grid = create_plan_grid();
plan_grid.data.parse(plan_data); //parse init data
layout.getCell('main').attach(plan_grid);
plan_grid.events.on("cellClick", function(row,column,e){
$(".grid_loading").show();
//change UI
var raw_t = (row.prpl_real_start == '대기') ? row.prpl_regdate : row.prpl_real_time;
raw_t = `${raw_t.substr(0,4)}-${raw_t.substr(4,2)}-${raw_t.substr(6,2)} ${raw_t.substr(8,2)}:${raw_t.substr(10,2)}`;
layout.config.rows[0].html = `<span>작업 내역</span>`; //change title
$('.layout_title').off('click').on('click', () => list_back()); //event binding
layout.config.rows[1].html = `<span>${row.prpl_real_start}<\/span><span>${raw_t}<\/span>`; //change header
layout.config.rows[1].css = `layout_status`; //change header css
//select_data [prod_work] + stwa_nm
var work_data = select_prod_work(row.prpl_uid);
var warehouse_data = {'table':'stnd_warehouse','column':['stwa_nm'],'where':{and:[{column:'stwa_uid',type:'=','data':warehouse_uid}]}};
work_data = select_common('',[work_data, warehouse_data]);
warehouse_nm = work_data.data[Object.keys(work_data.data)[1]][0].stwa_nm;
work_data = work_data.data[Object.keys(work_data.data)[0]];
//create tab
total_tab = create_tab(work_data); // tab * 3
total_tab.events.on("change", function(now,from){
comp_window.hide();
bad_window.hide();
out_window.hide();
compform.getItem("prwo_waitqty").setValue(work_data[now].prwo_waitqty);
var button_name = (work_data[now].prwo_status != '공정시작') ? 'comp_end':'comp_start';
compform.getItem("comp_start").setProperties({'text':work_data[now].prwo_status});
});
//create main form -- work idx 0 default
compform = create_compform(row, work_data[0]);
compform.events.on("Click", function(name, events) {
active_tab = Number(total_tab.getActive()); //active idx
var work_uid = work_data[active_tab].prwo_uid; //prwo_uid
var button_text = compform.getProperties('comp_start').text;
if(work_data[active_tab].prwo_waitqty == 0 && name != 'out'){
general_msg('잔여수량이 없습니다.','dhx_message--error');
return false;
}
if(name == 'comp_start' && button_text == '공정시작'){
var datetime = new Date();
var updatetime = datetime.yyyymmddhhmmss();
var status_update_box = [];
var status_result = update_status(work_uid, '공정종료', '생산중', updatetime);
status_update_box.push(status_result);
if(active_tab == 0){
status_update_box.push(update_plan_start(row.prpl_uid, updatetime));
}
var update_output = update_common(status_update_box);
if(update_output.result == 'success'){
if(active_tab == 0){
raw_t = `${updatetime.substr(0,4)}-${updatetime.substr(4,2)}-${updatetime.substr(6,2)} ${updatetime.substr(8,2)}:${updatetime.substr(10,2)}`;
document.getElementsByClassName('layout_status')[0].childNodes[0].childNodes[0].textContent = '진행중';
document.getElementsByClassName('layout_status')[0].childNodes[0].childNodes[1].textContent = raw_t;
}
compform.getItem("comp_start").setProperties({'text':'공정종료'});
work_data[active_tab].prwo_status = '공정종료';
}
}else if(name == 'comp_start' && button_text == '공정종료'){ //*** COMPLETION ***//
//clear
next_form.clear();
//set value & prop
next_form.setValue(row);
next_form.setValue(work_data[active_tab]);
next_form.setValue({'login_uid':login_uid,'func_nm':'update_work_stock'});
next_form.getItem("qty").setProperties({
'placeholder':`대기수량: ${work_data[active_tab].prwo_waitqty}`,
'validation' : function(value) {
return Number.isInteger(Number(value)) && value != '' && Number(value) <= Number(work_data[active_tab].prwo_waitqty) && Number(value) > 0;
}
});
//hide & show
bad_window.hide();
out_window.hide();
comp_window.show();
//set message box
next_form.getItem('text_msg').container.config.rows[0].html = `<span id = 'text_msg' style='color:black'>위 수량을 등록하시겠습니까?</span>`;
document.getElementById('text_msg').style.color = 'black'; //message default
document.getElementById('text_msg').textContent = '위 수량을 등록하시겠습니까?';
}else if(name == 'bad'){ //*** BAD ***//
//clear
bad_form.clear();
//set value & prop
bad_form.setValue(row);
bad_form.setValue(work_data[active_tab]);
bad_form.setValue({'login_uid':login_uid,'func_nm':'insert_work_bad'});
bad_form.getItem("prba_qty").setProperties({
'placeholder':`대기수량: ${work_data[active_tab].prwo_waitqty}`,
'validation': function(value) {
return Number.isInteger(Number(value)) && value != '' && Number(value) <= Number(work_data[active_tab].prwo_waitqty) && Number(value) > 0;
}
});
//hide & show
out_window.hide();
comp_window.hide();
bad_window.show();
//set message box
bad_form.getItem('bad_msg').container.config.rows[0].html = `<span id = 'bad_msg' style='color:black'>위 수량을 불량처리 하시겠습니까?</span>`;
document.getElementById('bad_msg').style.color = 'black'; //message default
document.getElementById('bad_msg').textContent = '위 수량을 불량처리 하시겠습니까?';
}else if(name == 'out'){ //*** OUT ***//
//clear
out_form.clear();
//set value & prop
out_form.setValue(row);
out_form.setValue(work_data[active_tab]);
out_form.setValue({'login_uid':login_uid,'func_nm':'insert_work_out'});
out_form.getItem("prwost_qty").setProperties({
'validation': function(value) {
return Number.isInteger(Number(value)) && value != '' && Number(value) <= Number(left_stock) && Number(value) > 0;
}
});
//set select option [init][default index = 0]
out_form.getItem("stit_cuid").setValue(bom_data[0].value);
stok_data = select_common('',[select_bom_stok(bom_data[0].value)]);
stok_data = stok_data.data[Object.keys(stok_data.data)[0]];
out_form.getItem("stwa_uid").setOptions(stok_data);
out_form.getItem("stitcl_cuid").setValue(bom_data[0].stitcl_cuid);
out_form.getItem("stitgr_cuid").setValue(bom_data[0].stitgr_cuid);
//hide & show
comp_window.hide();
bad_window.hide();
out_window.show();
//set message box
out_form.getItem('out_msg').container.config.rows[0].html = `<span id = 'out_msg' style='color:black'>위 수량을 추가불출 하시겠습니까?</span>`;
document.getElementById('out_msg').style.color = 'black'; //message default
document.getElementById('out_msg').textContent = '위 수량을 추가불출 하시겠습니까?';
}
//number pattern
$('.dhx_input').attr('pattern','\\d*');
});
compform.getItem("comp_start").setProperties({'text':work_data[0].prwo_status}); //work_idx 0 default
//parse form to tab
for(var i=0; i<work_data.length; i++){
total_tab.getCell(i).attach(compform); // parse
}
//parse tab to layout
layout.getCell('main').attach(total_tab);
//window*3 [comp, bad, out]
comp_window = create_window();
bad_window = create_window();
out_window = create_window();
out_window.setSize('',330);
//completion form
next_form = create_next_form(row, work_data[0]);
next_form.events.on("Click", function(name, events) { //COMPLETION SAVE
if(next_form.getItem('qty').getValue() == ''){ //error message case null
document.getElementById('text_msg').style.color = 'red';
document.getElementById('text_msg').textContent = '빈 값을 입력할 수 없습니다.';
}
if(name == 'button' && next_form.validate() == true){ //check button name & validation
if(active_tab+1 == work_data.length){ //THE LAST WORK STAGE
next_form.setValue({'stwa_uid':warehouse_uid}); //set warehouse index as 1[default]
}
next_form.send("./?json=insert_dhtmlx", "POST")
.then((output) => {
output = JSON.parse(output);
if(output.result == 'success'){
comp_window.hide();
general_msg('작업 결과 처리가 완료 되었습니다.');
work_data = select_prod_work(row.prpl_uid);
work_data = select_common('',[work_data]);
work_data = work_data.data[Object.keys(work_data.data)[0]];
compform.setValue(work_data[active_tab]);
next_form.setValue(work_data[active_tab]);
if(active_tab+1 == work_data.length){ //THE LAST WORK STAGE
var alert_text = `창고 : ${warehouse_nm} </br>
품목 : ${row.stit_nm} <br>
완료수량 : ${next_form.getItem('qty').getValue()}개
</br>
</br>
<span style='font-weight:bold'>작업 품목이 입고처리되었습니다.</span>`;
var button_nm;
if(output.final_chk == 'perfect'){ //THE LAST WORK STAGE & PLAN OVER
button_nm = '홈으로';
alert_text += `<\/br>
<\/br>
<span style='font-weight:bold'>[ 최 종 ]</span>
<\/br>
<span style='color:#0ab169'>지시수량(${next_form.getItem('prpl_qty').getValue()}개) 생산이 완료되었습니다.</span>`;
var bad_cnt = select_common('', [select_bad_cnt(row.prpl_uid)]); //bad qty chk
bad_cnt = bad_cnt.data[Object.keys(bad_cnt.data)[0]];
if(bad_cnt[0].sum > 0){
alert_text += `<\/br><span style='color:red'>불량처리(${bad_cnt[0].sum}개)</span>`;
}
}else{
button_nm = '확인';
}
dhx.alert({
text: alert_text,
buttonsAlignment: "center",
buttons: [button_nm],
}).then(function(test){
if(test && button_nm == '홈으로'){
list_back();
}
});
}
}else{
general_msg('작업 처리 과정에서 문제가 발생하였습니다.','dhx_message--error');
}
})
.catch((err) => err); // error[etc]
}
});
comp_window.attach(next_form);
//select badtype/outbom data
var bad_out_select = select_common('', [select_bad_type(), select_bom_sub(row.stbo_uid)]);
badtype_data = bad_out_select.data[Object.keys(bad_out_select.data)[0]];
bom_data = bad_out_select.data[Object.keys(bad_out_select.data)[1]];
//bad form
bad_form = create_bad_form(work_data[0], badtype_data);
bad_form.events.on("Click", function(name, events) {//BAD SAVE
if(bad_form.getItem('prba_qty').getValue() == ''){ //error message case null
document.getElementById('bad_msg').style.color = 'red';
document.getElementById('bad_msg').textContent = '빈 값을 입력할 수 없습니다.';
}
if(name == 'button' && bad_form.validate() == true){ //check button name & validation
bad_form.send("./?json=insert_dhtmlx", "POST")
.then((output) => {
output = JSON.parse(output);
if(output.result == 'success'){
bad_window.hide();
general_msg('불량처리 등록이 완료 되었습니다.');
work_data = select_prod_work(row.prpl_uid);
work_data = select_common('',[work_data]);
work_data = work_data.data[Object.keys(work_data.data)[0]];
compform.setValue(work_data[active_tab]);
bad_form.setValue(work_data[active_tab]);
next_form.setValue(work_data[active_tab]);
if(output.final_chk == 'perfect'){//PLAN OVER
var alert_text = `<span style='font-weight:bold'>[ 최 종 ]</span>
<\/br>
<span style='color:#0ab169'>지시수량(${work_data[active_tab].prpl_qty}개) 생산이 완료되었습니다.</span>`;
var button_nm = '홈으로';
var bad_cnt = select_common('', [select_bad_cnt(row.prpl_uid)]); //bad qty chk
bad_cnt = bad_cnt.data[Object.keys(bad_cnt.data)[0]];
if(bad_cnt[0].sum > 0){
alert_text += `<\/br><span style='color:red'>불량처리(${bad_cnt[0].sum}개)</span>`;
}
dhx.alert({
text: alert_text,
buttonsAlignment: "center",
buttons: [button_nm],
}).then(function(test){
list_back();
});
}
}else{
general_msg('불량처리 등록 과정에서 문제가 발생하였습니다.','dhx_message--error');
}
});
}
});
bad_window.attach(bad_form);
//out form
out_form = create_out_form(work_data[0], bom_data);
out_form.getItem("stit_cuid").events.on("change", function(value){ //selectBox change event 1
bom_data.forEach((etc_chk)=>{ //insert class, group info
if(etc_chk.value == value){
out_form.getItem("stitcl_cuid").setValue(etc_chk.stitcl_cuid);
out_form.getItem("stitgr_cuid").setValue(etc_chk.stitgr_cuid);
return false;
}
});
stok_data = select_common('',[select_bom_stok(value)]);
stok_data = stok_data.data[Object.keys(stok_data.data)[0]];
out_form.getItem("stwa_uid").setOptions(stok_data);
});
out_form.getItem("stwa_uid").events.on("change", function(chk_value){ //selectBox change event 2
stok_data.forEach((selected) => {
if(selected.value == chk_value){
left_stock = selected.qty;
return false;
}
})
out_form.getItem("prwost_qty").setProperties({ //change placeHolder
'placeholder':`재고: ${left_stock}`,
});
});
out_form.events.on("Click", function(name, events) { //OUTCOME SAVE
if(out_form.getItem('prwost_qty').getValue() == ''){ //error message case null
document.getElementById('out_msg').style.color = 'red';
document.getElementById('out_msg').textContent = '빈 값을 입력할 수 없습니다.';
}
if(name == 'button' && out_form.validate() == true){ //check button name & validation
out_form.send("./?json=insert_dhtmlx", "POST")
.then((output) => {
output = JSON.parse(output);
if(output.result == 'success'){
general_msg('추가불출 등록이 완료되었습니다.');
out_window.hide();
}else{
general_msg('추가불출 과정에서 문제가 발생하였습니다.','dhx_message--error');
}
});
}
});
out_window.attach(out_form);
setTimeout(function(){
$(".grid_loading").hide();
},200);
});
});
//*************************************** CONFIG & LOGIC ******************************************//
//LAYOUT [Main]
function create_layout(){
var layout = new dhx.Layout("layout", { //LAYOUT
rows: [
{
id: "title",
html: "<span>작업 등록</span>",
css: "layout_title",
height:'7.5%'
},
{
id: "header",
html: "<span>작업지시 리스트</span>",
css: "layout_header",
height:'7.5%',
},
{
id: "main",
padding:'1%'
}
]
});
return layout;
}
//GRID [prod_plan]
function create_plan_grid(){
var plan_grid = new dhx.Grid("", {
columns: [
{width: 45, id: "prpl_real_start", sortable: false, header: [{ text: "상태", align:'center'}],footer: [{}], align:'center'},
{width: 100, id: "prpl_num", sortable: false, header: [{ text: "생산계획번호", align:'center'}], align:'center'},
{width: 100, id: "stit_nm", header: [{ text: "품목", align:'center'}], footer: [{ text: "Total :",align:'right'}], align:'center'},
{id: "prpl_qty", sortable: false, header: [{ text: "계획수량", align:'center'}], footer: [{ content: "sum", align:'center' }], align:'center', format: "#,#"},
],
autoWidth: true,
});
return plan_grid;
}
//TAB BAR [VIEW]
function create_tab(data){
var total_tab = new dhx.Tabbar("", {
css: "custom-tab",
mode: "top",
tabAlign: 'center',
tabWidth: 100,
tabHeight: 50,
views: data
});
return total_tab;
}
// FORM [work_completion_main]
function create_compform(row, work_data){
var comp_form_config = {
css: "custom_compform",
rows: [
{
name: "login_uid",
type: "input",
required: true,
hidden: true,
value: login_uid,
},
{
name: "func_nm",
type: "input",
required: true,
hidden: true,
value: "",
},
{
name: "prpl_uid",
type: "input",
required: true,
hidden: true,
value: row.prpl_uid,
},
{
name: "prpl_compqty",
type: "input",
hidden: true,
value: row.prpl_compqty,
},
{
name: "prwo_uid",
type: "input",
required: true,
hidden: true,
value: work_data.prwo_uid,
},
{
name: "prwo_idx",
type: "input",
required: true,
hidden: true,
value: work_data.prwo_idx,
},
{
name: "stitcl_uid",
type: "input",
required: true,
hidden: true,
value: row.stitcl_uid,
},
{
name: "stitgr_uid",
type: "input",
required: true,
hidden: true,
value: row.stitgr_uid,
},
{
name: "stit_lot_sn_chk",
type: "input",
hidden: true,
value: row.stit_lot_sn_chk,
},
{
name: "stli_uid",
type: "input",
required: true,
hidden: true,
value: work_data.stli_uid,
},
{
name: "stpr_uid",
type: "input",
required: true,
hidden: true,
value: work_data.stpr_uid,
},
{
name: "stit_uid",
type: "input",
required: true,
hidden: true,
value: work_data.stit_uid,
},
{
name: "prpl_num",
type: "input",
label: "생산계획번호",
disabled: true,
labelPosition: "left",
labelWidth: 100,
value: row.prpl_num,
},
{
name: "stit_cd",
type: "input",
label: "품목코드",
disabled: true,
labelPosition: "left",
labelWidth: 100,
value: row.stit_cd,
},
{
name: "stit_nm",
type: "input",
label: "품목",
disabled: true,
labelPosition: "left",
labelWidth: 100,
value: row.stit_nm,
},
{
name: "prpl_qty",
type: "input",
label: "지시수량",
disabled: true,
labelPosition: "left",
labelWidth: 100,
value: row.prpl_qty
},
{
name: "prwo_waitqty",
type: "input",
label: "잔여수량",
disabled: true,
labelPosition: "left",
labelWidth: 100,
value: work_data.prwo_waitqty
},
{
align: "evenly",
cols: [
{
name: "comp_start",
type: "button",
text: "공정시작",
size: "medium",
view: "flat",
color: "secondary",
},
{
name: "bad",
type: "button",
text: "불량등록",
size: "medium",
view: "flat",
color: "secondary",
},
{
name: "out",
type: "button",
text: "불출등록",
size: "medium",
view: "flat",
color: "secondary",
}
]
}
]
};
const comp_form = new dhx.Form("", comp_form_config);
return comp_form;
}
// FORM [work_completion_next]
function create_next_form(row, work_data){
var next_form_config = {
rows: [
{
name: "login_uid",
type: "input",
required: true,
hidden: true,
value: login_uid,
},
{
name: "func_nm",
type: "input",
required: true,
hidden: true,
value: "update_work_stock",
},
{
name: "stwa_uid",
type: "input",
hidden: true,
value: "",
},
{
name: "prpl_uid",
type: "input",
required: true,
hidden: true,
value: row.prpl_uid,
},
{
name: "prwo_uid",
type: "input",
required: true,
hidden: true,
value: work_data.prwo_uid,
},
{
name: "prwo_idx",
type: "input",
required: true,
hidden: true,
value: work_data.prwo_idx,
},
{
name: "stitcl_uid",
type: "input",
required: true,
hidden: true,
value: row.stitcl_uid,
},
{
name: "stitgr_uid",
type: "input",
required: true,
hidden: true,
value: row.stitgr_uid,
},
{
name: "stit_lot_sn_chk",
type: "input",
hidden: true,
value: row.stit_lot_sn_chk,
},
{
name: "stit_uid",
type: "input",
required: true,
hidden: true,
value: row.stit_uid,
},
{
name: "stit_nm",
type: "input",
required: true,
label: "품목",
disabled: true,
hidden: true,
labelPosition: "left",
labelWidth: 80,
value: row.stit_nm,
},
{
name: "stli_uid",
type: "input",
required: true,
hidden: true,
value: work_data.stli_uid,
},
{
name: "stpr_uid",
type: "input",
required: true,
hidden: true,
value: work_data.stpr_uid,
},
{
name: "prpl_qty",
type: "input",
label: "지시수량",
disabled: true,
labelPosition: "left",
labelWidth: 80,
value: row.prpl_qty
},
{
name: "prwo_waitqty",
type: "input",
required: true,
label: "공정 대기수량",
hidden: true,
disabled: true,
labelPosition: "left",
labelWidth: 80,
value: work_data.prwo_waitqty
},
{
name: "prwo_compqty",
type: "input",
required: true,
label: "공정 완료수량",
hidden: true,
disabled: true,
labelPosition: "left",
labelWidth: 80,
value: work_data.prwo_compqty
},
{
name: "prpl_compqty",
type: "input",
required: true,
label: "생산 완료수량",
hidden: true,
disabled: true,
labelPosition: "left",
labelWidth: 80,
value: row.prpl_compqty
},
{
type: "input",
inputType: "number",
name: "qty",
required: true,
label: "완료수량",
placeholder: `대기수량: ${work_data.prwo_waitqty}`,
labelPosition: "left",
labelWidth: 80,
validation: function(value) {
return Number.isInteger(Number(value)) && value != '' && Number(value) <= Number(work_data.prwo_waitqty) && Number(value) > 0;
},
},
{
type: "container",
name: "text_msg",
html: `<span id = 'text_msg'>위 수량을 등록하시겠습니까?</span>`,
},
{
align: "center",
cols: [
{
name: "button",
type: "button",
submit: true,
text: "생산완료 등록",
size: "medium",
view: "flat",
color: "primary",
}
]
}
]
};
const next_form = new dhx.Form("", next_form_config);
// event[change errorMessage before validation]
next_form.events.on("beforeValidate", function(name, value){ // change messages after validating stre_nowqty form,
if(name == 'qty'){
switch(true){
case (value == ''):
next_form.getItem('text_msg').container.config.rows[0].html = `<span id = 'text_msg' style='color:red'>빈 값을 입력할 수 없습니다.</span>`;
break;
case (value <= 0):
next_form.getItem('text_msg').container.config.rows[0].html = `<span id = 'text_msg' style='color:red'>'0' 또는 음수를 입력할 수 없습니다.</span>`;
break;
case (value > Number(next_form.getItem("prwo_waitqty").getValue())):
next_form.getItem('text_msg').container.config.rows[0].html = `<span id = 'text_msg' style='color:red'>대기 수량을 초과하였습니다.</span>`;
break;
case (!Number.isInteger(Number(value))):
next_form.getItem('text_msg').container.config.rows[0].html = `<span id = 'text_msg' style='color:red'>올바른 형식이 아닙니다.</span>`;
break;
default:
next_form.getItem('text_msg').container.config.rows[0].html = `<span id = 'text_msg' style='color:#0ab169'>위 수량을 등록하시겠습니까?</span>`;
break;
}
}
});
return next_form;
}
// FORM [bad_main]
function create_bad_form(work_data, badtype_data){
var bad_form_config = {
css: 'next_comp',
rows: [
{
name: "login_uid",
type: "input",
required: true,
hidden: true,
value: login_uid,
},
{
name: "func_nm",
type: "input",
required: true,
hidden: true,
value: "insert_work_bad",
},
{
name: "prwo_uid",
type: "input",
required: true,
hidden: true,
value: work_data.prwo_uid,
},
{
name: "prpl_uid",
type: "input",
required: true,
hidden: true,
value: work_data.prpl_uid,
},
{
name: "stit_uid",
type: "input",
required: true,
hidden: true,
value: work_data.stit_uid,
},
{
name: "stli_uid",
type: "input",
required: true,
hidden: true,
value: work_data.stli_uid,
},
{
name: "stpr_uid",
type: "input",
required: true,
hidden: true,
value: work_data.stpr_uid,
},
{
name: "prpl_qty",
type: "input",
hidden: true,
value: work_data.prpl_qty
},
{
name: "prpl_compqty",
type: "input",
required: true,
hidden: true,
value: work_data.prpl_compqty,
},
{
name: "prwo_waitqty",
type: "input",
hidden: true,
value: work_data.prwo_waitqty
},
{
name: "stbaty_uid",
type: "select",
label: "불량 유형",
placeholder: "불량 유형을 선택 해 주세요.",
labelPosition: "left",
labelWidth: 80,
options: badtype_data,
},
{
type: "input",
inputType: "number",
name: "prba_qty",
required: true,
label: "불량 수량",
labelPosition: "left",
labelWidth: 80,
errorMessage: "",
validation: function(value) {
return Number.isInteger(Number(value)) && value != '' && Number(value) <= Number(work_data.prwo_waitqty) && Number(value) > 0;
},
},
{
type: "container",
name: "bad_msg",
html: `<span id = 'bad_msg'>위 수량을 불량처리 하시겠습니까?</span>`,
},
{
align: "center",
cols: [
{
name: "button",
type: "button",
submit: true,
text: "불량 등록",
size: "medium",
view: "flat",
color: "primary",
}
]
}
]
};
const bad_form = new dhx.Form("", bad_form_config);
bad_form.events.on("beforeValidate", function(name, value){ // change messages after validating stre_nowqty form,
if(name == 'prba_qty'){
switch(true){
case (value == ''):
bad_form.getItem('bad_msg').container.config.rows[0].html = `<span id = 'bad_msg' style='color:red'>빈 값을 입력할 수 없습니다.</span>`;
break;
case (value <= 0):
bad_form.getItem('bad_msg').container.config.rows[0].html = `<span id = 'bad_msg' style='color:red'>'0' 또는 음수를 입력할 수 없습니다.</span>`;
break;
case (value > Number(bad_form.getItem("prwo_waitqty").getValue())):
bad_form.getItem('bad_msg').container.config.rows[0].html = `<span id = 'bad_msg' style='color:red'>대기 수량을 초과하였습니다.</span>`;
break;
case (!Number.isInteger(Number(value))):
bad_form.getItem('bad_msg').container.config.rows[0].html = `<span id = 'bad_msg' style='color:red'>올바른 형식이 아닙니다.</span>`;
break;
default:
bad_form.getItem('bad_msg').container.config.rows[0].html = `<span id = 'bad_msg' style='color:#0ab169'>위 수량을 등록하시겠습니까?</span>`;
break;
}
}
});
return bad_form;
}
// FORM [out_main]
function create_out_form(work_data, bom_data){
var out_form_config = {
css: 'next_comp',
rows: [
{
name: "login_uid",
type: "input",
required: true,
hidden: true,
value: login_uid,
},
{
name: "func_nm",
type: "input",
required: true,
hidden: true,
value: "insert_work_out",
},
{
name: "prwo_uid",
type: "input",
required: true,
hidden: true,
value: work_data.prwo_uid,
},
{
name: "prpl_uid",
type: "input",
required: true,
hidden: true,
value: work_data.prpl_uid,
},
{
name: "stitcl_cuid",
type: "input",
hidden: true,
value: '',
},
{
name: "stitgr_cuid",
type: "input",
hidden: true,
value: '',
},
{
name: "stit_uid", //finished item
type: "input",
required: true,
hidden: true,
value: work_data.stit_uid,
},
{
name: "stit_cuid", //used materials
type: "select",
label: "불출 자재",
labelPosition: "left",
labelWidth: 80,
options: bom_data,
},
{
name: "stwa_uid",
type: "select",
label: "창고",
labelPosition: "left",
labelWidth: 80,
options: [{value:'', content:''}],
},
{
type: "input",
inputType: "number",
name: "prwost_qty",
required: true,
label: "수량",
labelPosition: "left",
labelWidth: 80,
errorMessage: "",
validation: function(value) {
return Number.isInteger(Number(value)) && value != '' && Number(value) <= Number(left_stock) && Number(value) > 0;
},
},
{
type: "container",
name: "out_msg",
html: `<span id = 'out_msg'>위 수량을 추가불출 하시겠습니까?</span>`,
},
{
align: "center",
cols: [
{
name: "button",
type: "button",
submit: true,
text: "추가불출 등록",
size: "medium",
view: "flat",
color: "primary",
}
]
}
]
};
const out_form = new dhx.Form("", out_form_config);
out_form.events.on("beforeValidate", function(name, value){ // change messages after validating stre_nowqty form,
if(name == 'prwost_qty'){
switch(true){
case (value == ''):
out_form.getItem('out_msg').container.config.rows[0].html = `<span id = 'out_msg' style='color:red'>빈 값을 입력할 수 없습니다.</span>`;
break;
case (value <= 0):
out_form.getItem('out_msg').container.config.rows[0].html = `<span id = 'out_msg' style='color:red'>'0' 또는 음수를 입력할 수 없습니다.</span>`;
break;
case (value > Number(left_stock)):
out_form.getItem('out_msg').container.config.rows[0].html = `<span id = 'out_msg' style='color:red'>재고 수량을 초과하였습니다.</span>`;
break;
case (!Number.isInteger(Number(value))):
out_form.getItem('out_msg').container.config.rows[0].html = `<span id = 'out_msg' style='color:red'>올바른 형식이 아닙니다.</span>`;
break;
default:
out_form.getItem('out_msg').container.config.rows[0].html = `<span id = 'out_msg' style='color:#0ab169'>위 수량을 등록하시겠습니까?</span>`;
break;
}
}
});
return out_form;
}
//WINDOW [General for Form]
function create_window(){
var window_config = {
movable: false,
closable: true,
minWidth: 300,
minHeight: 300,
css:'custom_window'
};
var general_window = new dhx.Window(window_config);
return general_window;
}
//MESSAGE [delete]
function general_msg(text, status = 'dhx_message--success'){
dhx.message({
text: text,
icon:"dxi-clock",
css: status,
node: 'layout',
position: "top-left",
expire:3000
});
}
//*************************************** FUNCTION [QUERY] ******************************************//
//prod_plan [select]
function select_prod_plan(){
var data_info = new Object();
var table = 'prod_plan';
var join_table = 'stnd_item';
var join_opt = {[table]:'stit_uid', [join_table]:'stit_uid'};
data_info.table = [table,join_table];
data_info.join = join_opt;
data_info.column = '*';
data_info.where = {and:[{column:'prpl_status',type:'=','data':'작업 진행'}]};
data_info.order = {'prpl_uid':'desc'};
return data_info;
}
//prod_work [select]
function select_prod_work(uid){
var data_info = new Object();
var table = 'prod_work';
var join_table = 'stnd_process';
var join_table2 = 'prod_plan';
var join_opt = {[table]:'stpr_uid', [join_table]:'stpr_uid'};
var join_opt1 = {[table]:'prpl_uid', [join_table2]:'prpl_uid'};
data_info.table = [table,join_table,join_table2];
data_info.join = [join_opt, join_opt1];
data_info.column = ['prod_work.*','stnd_process.stpr_nm AS tab','prod_work.prwo_idx AS id','prod_plan.*'];
data_info.where = {and:[{column:'prod_work.prpl_uid',type:'=','data':uid}]};
data_info.order = {'prwo_idx':'asc'};
return data_info;
}
//badtype [select]
function select_bad_type(){
var data_info = new Object();
data_info.table = 'stnd_bad_type';
data_info.column = ['stbaty_uid AS value','stbaty_nm AS content'];
data_info.order = {'stbaty_uid':'desc'};
return data_info;
}
//bad_cnt [select]
function select_bad_cnt(uid){
var data_info = new Object();
data_info.table = 'prod_bad';
data_info.column = ['SUM(prba_qty) AS sum'];
data_info.where = {and:[{column:'prpl_uid',type:'=','data':uid}]};
return data_info;
}
//BOM [select]
function select_bom_sub(uid){
var data_info = new Object();
var table = 'stnd_bom_sub';
var join_table = 'stnd_item';
var join_opt = {[table]:'stit_uid', [join_table]:'stit_uid'};
data_info.table = [table,join_table];
data_info.join = join_opt;
data_info.column = ['stnd_bom_sub.stit_uid AS value', 'stnd_item.stit_nm AS content', 'stnd_item.stitcl_uid AS stitcl_cuid', 'stnd_item.stitgr_uid AS stitgr_cuid'];
data_info.where = {and:[{column:'stbo_uid',type:'=','data':uid}]};
data_info.order = {'stbosu_uid':'desc'};
return data_info;
}
//bom_stok [select]
function select_bom_stok(uid){
var data_info = new Object();
data_info.table = 'view_stok_record_rack';
data_info.column = ['stwa_uid AS value','stwa_nm AS content', 'stre_nowqty AS qty'];
data_info.where = {and:[{column:'stit_uid',type:'=','data':uid}]};
data_info.order = {'stwa_uid':'asc'};
return data_info;
}
//work status [update]
function update_status(uid, value, value_text, updatetime){
var data_info = new Object();
data_info.table = 'prod_work';
data_info.column = {
'prwo_status':value,
'prwo_status_text':value_text,
'prwo_starttime':updatetime + '00',
};
data_info.pk = 'prwo_uid';
data_info.pk_value = [uid];
return data_info;
}
//plan status [update]
function update_plan_start(uid, updatetime){
var data_info = new Object();
data_info.table = 'prod_plan';
data_info.column = {
'prpl_real_start':'진행중',
'prpl_real_time':updatetime + '00',
};
data_info.pk = 'prpl_uid';
data_info.pk_value = [uid];
return data_info;
}
//*************************************** FUNCTION [ETC] ******************************************//
//back to plan list
function list_back(){
comp_window.hide();
bad_window.hide();
out_window.hide();
//change header
layout.config.rows[0].html = `<span>작업 등록<\/span>`; //title
layout.config.rows[1].html = `<span>작업지시 리스트<\/span>`; //header
layout.config.rows[1].css = `layout_header`; //css
// select_data [prod_plan]
var plan_data = select_prod_plan();
plan_data = select_common('',[plan_data]);
plan_data = plan_data.data[Object.keys(plan_data.data)[0]];
// create grid [prod_plan]
plan_grid.data.parse(plan_data); //parse init data
layout.getCell('main').attach(plan_grid);
}
//millisecond
Date.prototype.yyyymmdd = function() {
var mm = this.getMonth() + 1;
var dd = this.getDate();
return [this.getFullYear(),
(mm>9 ? '' : '0') + mm,
(dd>9 ? '' : '0') + dd
].join('');
};
Date.prototype.hhmmss = function() {
var hh = this.getHours();
var mm = this.getMinutes();
var ss = this.getSeconds();
return [(hh>9 ? '' : '0') + hh,
(mm>9 ? '' : '0') + mm,
(ss>9 ? '' : '0') + ss,
].join('');
};
Date.prototype.yyyymmddhhmmss = function() {
return this.yyyymmdd() + this.hhmmss();
};
console.log = function() {}; //console rejection
