Spring Boot API 서버 테스트 3

1. 사전준비

mariadb 설치
db생성 및 user 권한 설정 세팅
테스트용 테이블 , 데이터 세팅

Member.java

MariaDB [mysql]> select user from user;
+-------------+
| User        |
+-------------+
| root        |
| root        |
| root        |
| mariadb.sys |
| root        |
| testUser    |
+-------------+
6 rows in set (0.001 sec)

MariaDB [mysql]> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| sys                |
| testdb             |
+--------------------+
5 rows in set (0.001 sec)

2. pom.xml dependency 세팅

데이터 전달환경 및 패키지 구성 테스트
https://mvnrepository.com/ 해당 URL을 통하여 dependancy 코드 추가

pom.xml

		<!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-jdbc -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.mariadb.jdbc/mariadb-java-client -->
		<dependency>
			<groupId>org.mariadb.jdbc</groupId>
			<artifactId>mariadb-java-client</artifactId>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.5.5</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>2.0.5</version>
		</dependency>

3. DB세팅 및 MyBatis config 매핑

1) DB INFO 참조 파일

pom.xml을 통해 세팅된 driver를 사용하여 db정보 세팅 파일 생성

application.properties

spring.datasource.driver-class-name=org.mariadb.jdbc.Driver
spring.datasource.url=jdbc:mariadb://127.0.0.1:3306/testdb
spring.datasource.username=testUser
spring.datasource.password=*********

2) MyBatis map 생성

application.properties에 작성된 DB 정보를 사용하여 DB 연결객체를 생성한다.

MyBatisConfig.java

package com.example.demo;
import javax.sql.DataSource;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import
org.springframework.core.io.support.PathMatchingResourcePatternResolver;

@Configuration
@MapperScan(basePackages = "com.example.demo.dao")
public class MyBatisConfig {
	@Bean
	public SqlSessionFactory sqlSessionFactory(DataSource dataSource) throws Exception {
		SqlSessionFactoryBean sessionFactory = new SqlSessionFactoryBean();

		sessionFactory.setDataSource(dataSource);
		sessionFactory.setMapperLocations(new PathMatchingResourcePatternResolver().getResources("classpath:mapper/*.xml"));

		return sessionFactory.getObject();
	}
}

4. dao 영역 생성

1) dao interface 생성

return List 컬렉션으로 프로퍼티 세팅

MembersDAO.java

package com.example.demo.dao;

import java.util.List;

import org.springframework.stereotype.Repository;

import com.example.demo.dto.Member;

@Repository
public interface MembersDAO {
	List<Member> testMember();
}

2) mapper.xml 생성

MembersDAO interface 맵핑작업
dto bean 객체 return 세팅

src/main/resources/mapper/mapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.demo.dao.MembersDAO">
	<select id="testMember" resultType="com.example.demo.dto.Member">
		SELECT * FROM members
	</select>
</mapper>

5. controller, service영역 return 값 수정

1) controller 수정

MembersController.java

package com.example.demo.controller;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import com.example.demo.dto.Member;
import com.example.demo.service.MembersService;

@RestController
public class MembersController {

	@Autowired
	private MembersService service;

	@GetMapping(path="/test")
	public List<Member> memberTest() { // <-- return List<Members>
		return service.testMember();
	}
}

2) service 수정

MembersService.java

package com.example.demo.service;

import java.util.List;

import com.example.demo.dto.Member;

public interface MembersService {
	List<Member> testMember(); // <-- return List<Member>
}

MembersServiceImpl.java

dao 객체를 return하도록 수정
List 자료형 내 Member bean이 담겨 return

package com.example.demo.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.example.demo.dao.MembersDAO;
import com.example.demo.dto.Member;
import com.example.demo.service.MembersService;

@Service
public class MembersServiceImpl implements MembersService{
	@Autowired
	private MembersDAO dao;

	@Override
	public List<Member> testMember(){
		return dao.testMember();
	}
}

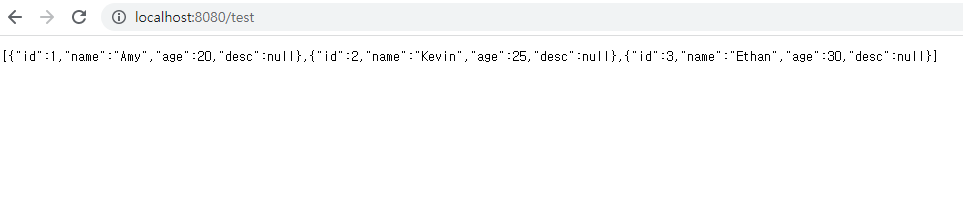

web client result page
