기능설명
- 태블릿용 생산 관리 페이지 구현
- 품목 바코드를 사용하여 생산품목 입고
- 단순 입고 및 출고 / 출하 처리
- 바코드는 시크릿코드, 날짜, 품목코드를 조합하여 생성한다.
- 태블릿 바코드 스캐너를 통한 바코드 인식
목록 화면

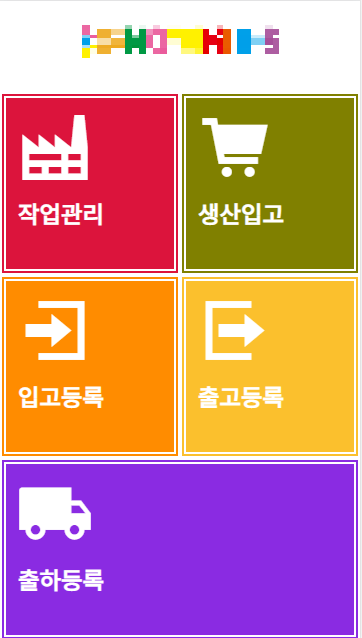

* 태블릿 화면 메뉴구성.

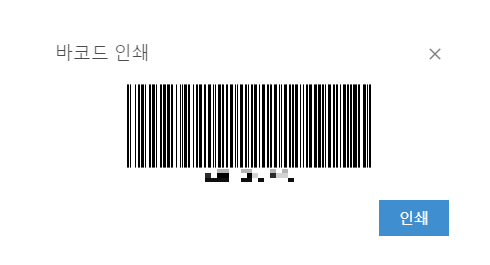

* 품목 별 바코드 생성하여 개별 인쇄가 가능하다.

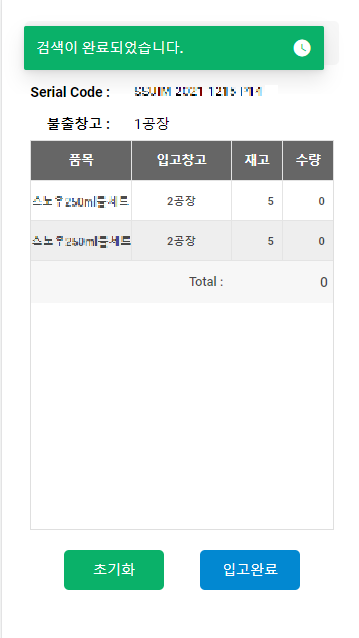

* 창고 내 바코드 정보를 확인하여 이동가능 재고를 파악한다.

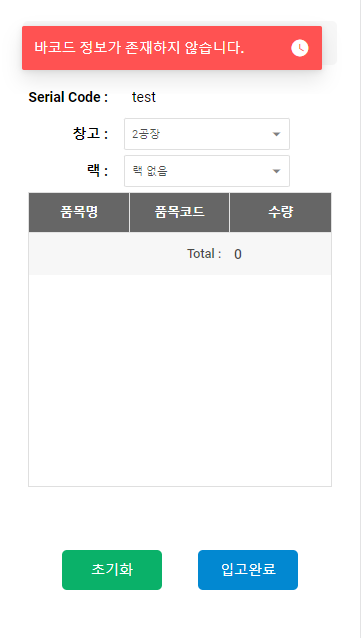

* 바코드 정보가 일치하지 않거나 재고가 없는 경우 알림 메시지를 띄워준다.
생산입고
/*
##### 수정로그 #####
2021.10.26 김현중 신규
*/
//*************************************** GLOBAL ******************************************//
//layout
var layout;
//form
var move_form;
//grid
var move_grid;
//data
var now_item;
var barcode_scanning_value = '';
var ware_data;
var ware_name = new Array;
//*************************************** EXECUTION ******************************************//
$(function(){
//************ init *************//
// create layout
layout = create_layout();
// create grid
// ware_data = select_common('', [{'table':'stnd_warehouse', 'column':['stwa_uid','stwa_nm'], 'where':{and:[{column : 'use_chk', 'type' : '=', 'data' : 0}]}}]);
// ware_data = ware_data.data[Object.keys(ware_data.data)[0]];
ware_data = [{'stwa_uid':'1', 'stwa_nm':'2공장'}];
// console.log(ware_data);
for(var i=0; i<ware_data.length; i++){
ware_name.push(ware_data[i].stwa_nm);
}
move_grid = create_move_grid();
// create form
move_form = create_move_form();
// combine
move_form.getItem('grid').attach(move_grid);
layout.getCell('main').attach(move_form);
// barcode
barcodeScan();
//************ control *************//
// grid event
move_grid.events.on("cellClick", function(row,column,e){
if(column.id == 'stwa_uid' || column.id == 'stit_maxqty'){
move_grid.editCell(row.id, column.id);
}
});
move_grid.events.on("AfterEditEnd", function(value,row,column){
if(column.id == 'stit_maxqty'){
if(!Number.isInteger(value) || value === '' || value < 1){
row.stit_maxqty = row.init_maxqty;
d_message('양의 정수만 입력 가능합니다.','layout','expire dhx_message--error',2000,'top-left');
}else if(value > row.stre_nowqty){
d_message('이동 가능 수량을 초과하였습니다.','layout','expire dhx_message--error',2000,'top-left');
row.stit_maxqty = row.init_maxqty;
}
barcode_scanning_value = '';
}
});
// form event
move_form.events.on("Click", function(name, events) {
if(name == 'refresh'){
d_confirm('품목을 초기화 하시겠습니까?',(ans) => {
if(ans === true){
all_refresh();
}
});
}
if(name == 'out'){
var save_data = move_grid.data.serialize();
if(save_data.length < 1){
d_message('입고 품목이 존재하지 않습니다.','layout','expire dhx_message--error',2000,'top-left');
return false;
}
var final_data = combine_data(save_data);
if(final_data[0] == 'over'){
d_alert(`${final_data[1]} 항목의 입고수량이 가능 재고량을 초과하였습니다.` )
return false;
}
d_confirm("해당 품목을 입고하시겠습니까?", function(chk){
if(chk == true){
call_ajax('insert_move_item',{'data' : final_data},function(json){
if(json.result == 'success'){
//alert text
var alert_text ='';
for(var i=0; i < final_data.length; i++){
alert_text += `<span>${final_data[i].stit_nm} [${final_data[i].stit_maxqty}개 -> ${final_data[i].stwa_nm}]</span><\/br>`;
}
alert_text += `</br> <span style = 'color:#0ab169'>최종입고 완료되었습니다.<\/span>`;
dhx.alert({
text: alert_text,
buttonsAlignment: "center",
buttons : ['확인']
}).then(function(chk){
if(chk){
//refresh
all_refresh();
}
});
}else{
d_alert('입고 과정에서 문제가 발생하였습니다. 관리자에게 문의 해 주세요.');
}
});
}
});
}
});
});
//*************************************** CONFIG & LOGIC ******************************************//
//LAYOUT [Main]
function create_layout(){
var layout = new dhx.Layout("layout", { //LAYOUT
rows: [
{
id: "title",
html: "<span>생산 입고</span>",
css: "layout_title",
height:'7.5%'
},
{
id: "toolbar",
height: "content"
},
{
id: "main",
}
]
});
return layout;
}
// FORM [work_completion_main]
function create_move_form(){
var moveform_config = {
css: "custom_compform",
rows: [
{
name: "serial_code",
type: "input",
label: "Serial Code :",
disabled: true,
labelPosition: "left",
labelWidth: 80,
readOnly: true,
placeholder: "XXXXX-0000-000-X0",
},
{
name: "stwa_out",
type: "input",
label: "불출창고 :",
disabled: true,
labelPosition: "left",
labelWidth: 80,
readOnly: true,
value: "1공장",
},
{
type: "container",
name: "grid",
height: 390
},
{
align: "evenly",
cols: [
{
name: "refresh",
type: "button",
text: "초기화",
submit:true,
size: "medium",
view: "flat",
color: "success",
},
{
name: "out",
type: "button",
text: "입고완료",
size: "medium",
view: "flat",
color: "primary",
}
]
}
]
};
const move_form = new dhx.Form("", moveform_config);
return move_form;
}
//GRID [prod_plan]
function create_move_grid(){
var move_grid = new dhx.Grid("", {
columns: [
{id: "stit_nm", width:100, sortable: false, header: [{ text: "품목", align:'center'}], align:'center', editable: false},
{id: "stwa_uid", width:100, sortable: false, header: [{ text: "입고창고", align:'center'}], editorType: "select", options: ware_name, editable: true, footer: [{ text: "Total :",align:'right'}], align:'center'},
{id: "stre_nowqty", sortable: false, header: [{ text: "재고", align:'center'}], format: "#,#"},
{id: "stit_maxqty", sortable: false, header: [{ text: "수량", align:'center'}], format: "#,#", editable: true, footer: [{ content: "sum" }]},
],
autoWidth: true,
});
return move_grid;
}
//****************************************** FUNCTION *********************************************//
function barcodeScan(){
$(window).off('keypress').keypress(function(e){
if(e.which != '13'){
barcode_scanning_value += e.key;
}else{
if(barcode_scanning_value){
move_form.setValue({'serial_code': barcode_scanning_value});
call_ajax('select_move_item',{'data' : {'barcode':barcode_scanning_value, 'stwa_uid':2}},function(json){
if(json.result == 'success'){
if(json.data.length > 0){
now_item = json.data[0];
now_item.stwa_uid = ware_data[0].stwa_nm;
now_item.init_maxqty = now_item.stit_maxqty;
var length_chk = move_grid.data.serialize().length;
move_grid.data.add(now_item, 0);
d_message('검색이 완료되었습니다.','layout','expire dhx_message--success',2000,'top-left');
}else{
d_message('바코드 정보가 존재하지 않습니다.','layout','expire dhx_message--error',2000,'top-left');
}
}else{
d_alert('바코드 검색 과정에서 문제가 발생하였습니다. 관리자에게 문의 해 주세요.');
}
}, true);
barcode_scanning_value = '';
}
}
});
}
//refresh
function all_refresh(){
now_item = '';
barcode_scanning_value = '';
ware_data ='';
ware_name = [];
//warehouse select_option refresh
ware_data = select_common('', [{'table':'stnd_warehouse', 'column':['stwa_uid','stwa_nm'], 'where':{and:[{column : 'use_chk', 'type' : '=', 'data' : 0}]}}]);
ware_data = ware_data.data[Object.keys(ware_data.data)[0]];
for(var i=0; i<ware_data.length; i++){
ware_name.push(ware_data[i].stwa_nm);
}
move_grid.config.columns[1].options = ware_name;
//grid & barcode refresh
move_grid.data.parse([]);
move_form.setValue({'serial_code':''});
}
//combine_data
function combine_data(separated){
var raw_data = separated;
var combined_data = [];
for(var i=0; i < raw_data.length; i++){
var ware_uid = ware_data.filter(j => j.stwa_nm == raw_data[i].stwa_uid);//add stwa_uid
raw_data[i].stwa_nm = raw_data[i].stwa_uid;
raw_data[i].stwa_uid = ware_uid[0].stwa_uid;
var dup_chk = 0;
if(combined_data.length > 0){ //combine maxqty
for(var k=0; k < combined_data.length; k++){
if(raw_data[i].stit_uid == combined_data[k].stit_uid){
combined_data[k].stit_maxqty = Number(combined_data[k].stit_maxqty) + Number(raw_data[i].stit_maxqty);
if(Number(combined_data[k].stit_maxqty) > Number(combined_data[k].stre_nowqty)){
return ['over',raw_data[i].stit_nm];
}
dup_chk = 1;
break;
}
}
}
if(dup_chk == 0){
combined_data.push(raw_data[i])
}
}
return combined_data;
}
입/출고/출하
/*
##### 수정로그 #####
2021.11.02 김현중 신규
*/
//*************************************** GLOBAL ******************************************//
//layout
var layout;
//form
var move_form;
//grid
var move_grid;
//data
var now_item;
var barcode_scanning_value = '';
var ware_data;
var rack_data;
//*************************************** EXECUTION ******************************************//
$(function(){
//************ init *************//
// create layout
layout = create_layout();
// create grid
move_grid = create_move_grid();
// create form
ware_data = select_common('',[{'table' : 'stnd_warehouse','column' : ['stwa_uid AS value','stwa_nm AS content'],'where' : {and:[{column : 'use_chk', 'type' : '=', 'data' : 0}]}}]);
ware_data = ware_data.data[Object.keys(ware_data.data)[0]];
rack_data = select_common('',[{'table' : 'stnd_warehouse_rack','column' : ['stwara_uid AS value','stwara_nm AS content'],'where' : {and:[{column : 'stwa_uid', 'type' : '=', 'data' : ware_data[0].value},{column : 'use_chk', 'type' : '=', 'data' : 0}]}}]);
rack_data = rack_data.data[Object.keys(rack_data.data)[0]];
rack_data.unshift({'value':'0', 'content':'랙 없음'});
move_form = create_move_form();
// combine
move_form.getItem('grid').attach(move_grid);
layout.getCell('main').attach(move_form);
// barcode
barcodeScan();
//************ control *************//
// grid event
move_grid.events.on("cellClick", function(row,column,e){
if(column.id == 'qty'){
move_grid.editCell(row.id, column.id);
}
});
move_grid.events.on("AfterEditEnd", function(value,row,column){
if(column.id == 'qty'){
if(!Number.isInteger(value) || value === '' || value < 1){
row.qty = 1;
d_message('양의 정수만 입력 가능합니다.','layout','expire dhx_message--error',2000,'top-left');
}
barcode_scanning_value = '';
}
});
// form event
move_form.getItem("stwa_uid").events.on("change", function(uid){ // selectBox change
select_async('',[{
'table':'stnd_warehouse_rack',
'column' : ['stwara_uid AS value','stwara_nm AS content'],
'where':{and:[{column : 'stwa_uid', 'type' : '=', 'data' : uid},{column : 'use_chk', 'type' : '=', 'data' : 0}]},
}]
).then((result_data)=>{
rack_data = result_data.data[Object.keys(result_data.data)[0]]
rack_data.unshift({'value':'0', 'content':'랙 없음'});
move_form.getItem("stwara_uid").setOptions(rack_data);
});
});
move_form.getItem("stwara_uid").events.on("change", function(uid){
});
move_form.events.on("Click", function(name, events) { // click
if(name == 'refresh'){
d_confirm('품목을 초기화 하시겠습니까?',(ans) => {
if(ans === true){
all_refresh();
}
});
}
if(name == 'in'){
var save_data = move_grid.data.serialize();
if(save_data.length < 1){
d_message('입고 품목이 존재하지 않습니다.','layout','expire dhx_message--error',2000,'top-left');
return false;
}
d_confirm("해당 품목을 입고하시겠습니까?", function(chk){
if(chk == true){
var final_data = new Object;
final_data.stwa_uid = move_form.getItem('stwa_uid').getValue();
final_data.stwara_uid = move_form.getItem('stwara_uid').getValue();
final_data.save_data = save_data;
var ware_nm = $(".dhx_select option:selected").eq(0).text();
var rack_nm = $(".dhx_select option:selected").eq(1).text();
call_ajax('insert_in_tablet',{'data' : final_data},function(json){
if(json.result == 'success'){
//alert text
var alert_text ='';
for(var i=0; i < save_data.length; i++){
alert_text += `<span>${save_data[i].stit_nm} [${save_data[i].qty}개]</span><\/br>`;
}
alert_text += `</br> <span style = 'color:orange'>${ware_nm} \/ ${rack_nm}<\/span>`;
alert_text += `</br> <span style = 'color:#0ab169'>최종입고 완료되었습니다.<\/span>`;
dhx.alert({
text: alert_text,
buttonsAlignment: "center",
buttons : ['확인']
});
all_refresh();//refresh
}else{
d_alert('입고 과정에서 문제가 발생하였습니다. 관리자에게 문의 해 주세요.');
}
});
}
});
}
});
});
//*************************************** CONFIG & LOGIC ******************************************//
//LAYOUT [Main]
function create_layout(){
var layout = new dhx.Layout("layout", { //LAYOUT
rows: [
{
id: "title",
html: "<span>입고 등록</span>",
css: "layout_title",
height:'7.5%'
},
{
id: "toolbar",
height: "content"
},
{
id: "main",
}
]
});
return layout;
}
// FORM [work_completion_main]
function create_move_form(){
var moveform_config = {
css: "custom_compform",
rows: [
{
name: "serial_code",
type: "input",
label: "Serial Code :",
disabled: true,
labelPosition: "left",
labelWidth: 80,
readOnly: true,
placeholder: "XXXXX-0000-000-X0",
},
{
name: "stwa_uid",
type: "select",
label: "창고 :",
labelPosition: "left",
labelWidth: 80,
options: ware_data
},
{
name: "stwara_uid",
type: "select",
label: "랙 :",
labelPosition: "left",
labelWidth: 80,
options: rack_data,
},
{
type: "container",
name: "grid",
height: 300,
},
{
align: "evenly",
cols: [
{
name: "refresh",
type: "button",
text: "초기화",
submit:true,
size: "medium",
view: "flat",
color: "success",
},
{
name: "in",
type: "button",
text: "입고완료",
size: "medium",
view: "flat",
color: "primary",
}
]
}
]
};
const move_form = new dhx.Form("", moveform_config);
return move_form;
}
//GRID [prod_plan]
function create_move_grid(){
var move_grid = new dhx.Grid("", {
columns: [
{id: "stit_nm", width:100, sortable: false, header: [{ text: "품목명", align:'center'}], align:'center', editable: false},
{id: "stit_cd", width:100, sortable: false, header: [{ text: "품목코드", align:'center'}], align:'center', editable: false, footer: [{ text: "Total :",align:'right'}]},
{id: "qty", sortable: false, header: [{ text: "수량", align:'center'}], format: "#,#", editable: true, footer: [{ content: "sum",align:'right' }]},
],
autoWidth: true,
});
return move_grid;
}
//****************************************** FUNCTION *********************************************//
function barcodeScan(){
$(window).off('keypress').keypress(function(e){
if(e.which != '13'){
barcode_scanning_value += e.key;
}else{
if(barcode_scanning_value){
move_form.setValue({'serial_code': barcode_scanning_value});
//SELECT & PARSE
select_async('',[{
'table':'stnd_item',
'where':{and:[{column : 'stit_barcode', 'type' : '=', 'data' : barcode_scanning_value},{column : 'use_chk', 'type' : '=', 'data' : 0}]},
}]
).then((result_data)=>{
if(result_data.result == 'success'){
if(result_data.data[Object.keys(result_data.data)[0]].length > 0){
now_item = result_data.data[Object.keys(result_data.data)[0]][0];
now_item.qty = 1;
move_grid.data.add(now_item, 0);
}else{
d_message('바코드 정보가 존재하지 않습니다.','layout','expire dhx_message--error',2000,'top-left');
}
}else{
d_alert('바코드 검색 과정에서 문제가 발생하였습니다. 관리자에게 문의 해 주세요.');
}
});
barcode_scanning_value = '';
}
}
});
}
//refresh
function all_refresh(){
now_item = '';
barcode_scanning_value = '';
ware_data ='';
rack_data ='';
//warehouse select_option refresh
ware_data = select_common('',[{'table' : 'stnd_warehouse','column' : ['stwa_uid AS value','stwa_nm AS content'],'where' : {and:[{column : 'use_chk', 'type' : '=', 'data' : 0}]}}]);
ware_data = ware_data.data[Object.keys(ware_data.data)[0]];
move_form.getItem("stwa_uid").setOptions(ware_data);
rack_data = select_common('',[{'table' : 'stnd_warehouse_rack','column' : ['stwara_uid AS value','stwara_nm AS content'],'where' : {and:[{column : 'stwa_uid', 'type' : '=', 'data' : ware_data[0].value},{column : 'use_chk', 'type' : '=', 'data' : 0}]}}]);
rack_data = rack_data.data[Object.keys(rack_data.data)[0]];
rack_data.unshift({'value':'0', 'content':'랙 없음'});
move_form.getItem("stwara_uid").setOptions(rack_data);
//grid & barcode refresh
move_grid.data.parse([]);
move_form.setValue({'serial_code':''});
}
